Jumbo Display

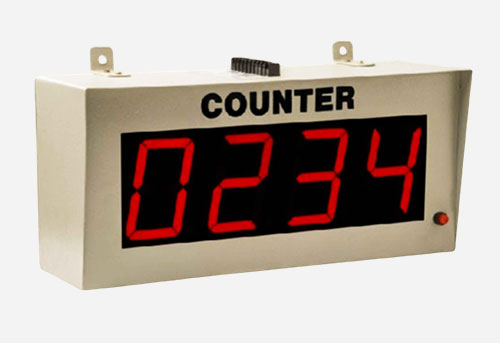

Jumbo Display Counter

This is a 7 segment LED display used for long range visibility.

Normally red colour LED are used.

It can display production count, length, MPM and RPM.

Height of the display depends on the viewing distance.

Specifications

• Count input: Proximity, photo sensor, encoder, potential free
• Built in 24 VDC sensor supply
• Settable Scale factor
• Number of digits : 4 or 6
• Memory retention in case of power failure
• Configurable for: Count, RPM, MPM, length
• Detachable programmable keyboard for programming
• Relay output available
• Mounting: Roof hanging or wall mounted
• Display sizes available: 2" (50 mm ), 4" (100 mm), 6" (150 mm) and 8" (200 mm)

For More details please call or mail us.

Send Message

Jumbo Display Timer

We manufacture 7 segment display timer with large display.

It displays time in seconds, minutes or hours.

The ranges are field programmable.

Specifications

• Timer input: On power up / potential free start pulse
• Number of digits: 3 or 4 digits
• Configurable for: UP or DOWN count
• Memory retention in case of power failure
• Detachable programmable keyboard for programming
• Relay output available
• Mounting: Roof hanging or wall mounted.
• Display sizes available - 2" (50 mm ), 4" (100 mm) , 6" (150 mm) and 8" (200 mm)

For More details please call or mail us.

Send Message

Jumbo Display Process Temperature Indicator

We manufacture Jumbo process indicators for various analog inputs.

These are 7 segment red LED display and field programmable.

Optional alarms are also available on request.

Any sensor can be configured to this using the programmable keys.

Specifications

• Input: Pt/ 100 / J / K or Universal input
• Built in 24 VDC sensor supply
• Accuracy:0.5%
• Resolution: 01 or 1 settable
• Scale factor display settable
• Number of digits: 4 digits for process and 5 for weight and flow
• Configurable for: Temperature, pressure, flow. Weight, current , voltage
• Display sizes available: 2" (50 mm ), 4" (100 mm) , 6" (150 mm) and 8" (200 mm)

For More details please call or mail us.

Send Message

Jumbo Display Temperature Scanner

We manufacture large size temperature scanners for process indication.

Scanners are used to display multiple inputs on a single display.

Separate display is provided for channel and process indication.

Specifications

• Input : Universal
• Number of digits : 2 for channel and 4 for process display
• No. of channels : 4, 8, 12,16
• Channel scan rate : 0.25 sec per channel
• Channel hold / skip facility
• Common or Individual alarm facility
• Optional : RS 485 MODBUS facility
• Can be configured for temperature, pressure, flow
• Display sizes available - 2" (50 mm ) and 4" (100 mm)

For More details please call or mail us.

Send Message

Jumbo Display Temperature and Humidity Indicator

It shows temperature and humidity on a 7 segment display at the same time.

The temperature display is above the humidity display.

A common sensor gives dual output configured as RTD and 4-20 mA

Specifications

• Input : RTD for temperature and 4-20 mA for humidity
• Built in 24 VDC sensor supply
• Scale factor display settable
• Number of digits : 4 for temperature and 4 for humidity
• Common or Individual alarm facility
• Optional : RS 485 MODBUS facility
• Configurable for : Temperature, pressure, flow. Weight, current , voltage
• Display sizes available : 4" (100 mm) , 6" (150 mm) and 8" (200 mm)

For More details please call or mail us.
