The basic sensors manufactured are RTD and Thermocouples.
RTD - PT 100 and PT 1000
Thermocouples - J / K / R / S / T
These are regular temperature sensors used for general applications. These are used in water tanks, ovens , pharmaceuticals, chemicals.

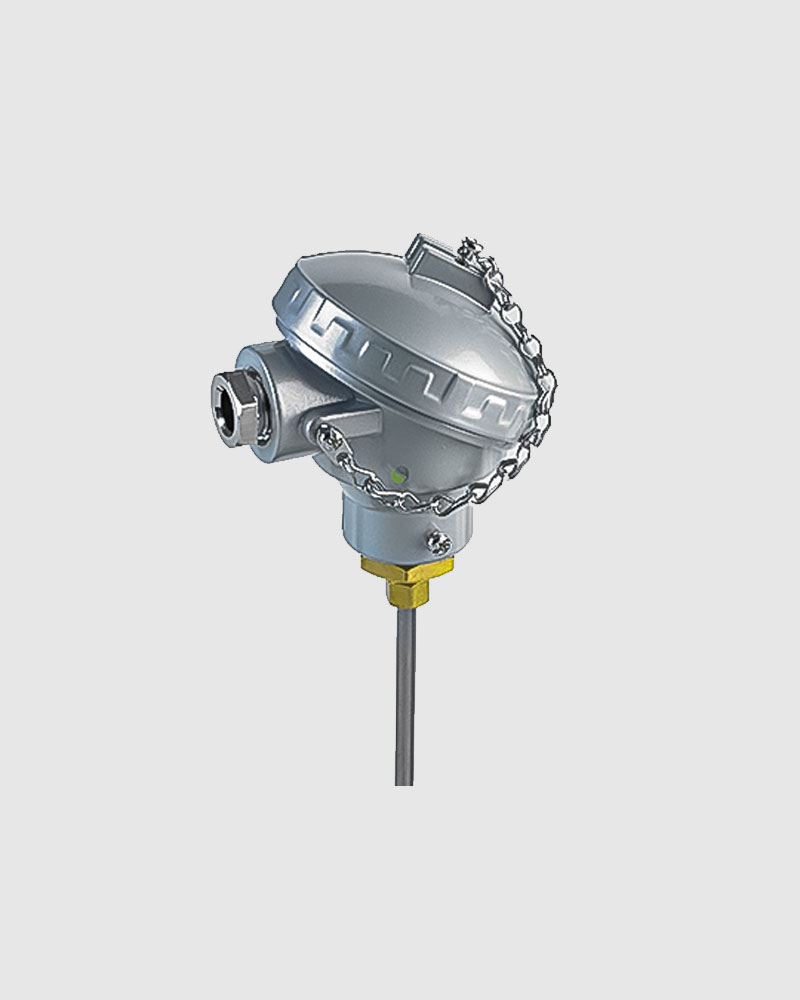

Temperature Sensor or Thermocouple with Head
Wire Type | RTD / Thermocouple |
Element | Simplex / Duplex |
Diameter of Sheath | 6/8/10 mm or as per demand |
Length | As per demand |
Sheath Material | SS 316 / SS310 / Inconel / Titanium |
Termination | Head Type |
Head | Weather Proof / Flame Proof |
The basic sensors manufactured are RTD and Thermocouples.
RTD - PT 100 and PT 1000
Thermocouples - J / K / R / S / T
These are regular temperature sensors used for general applications. These are used in water tanks, ovens , pharmaceuticals, chemicals.

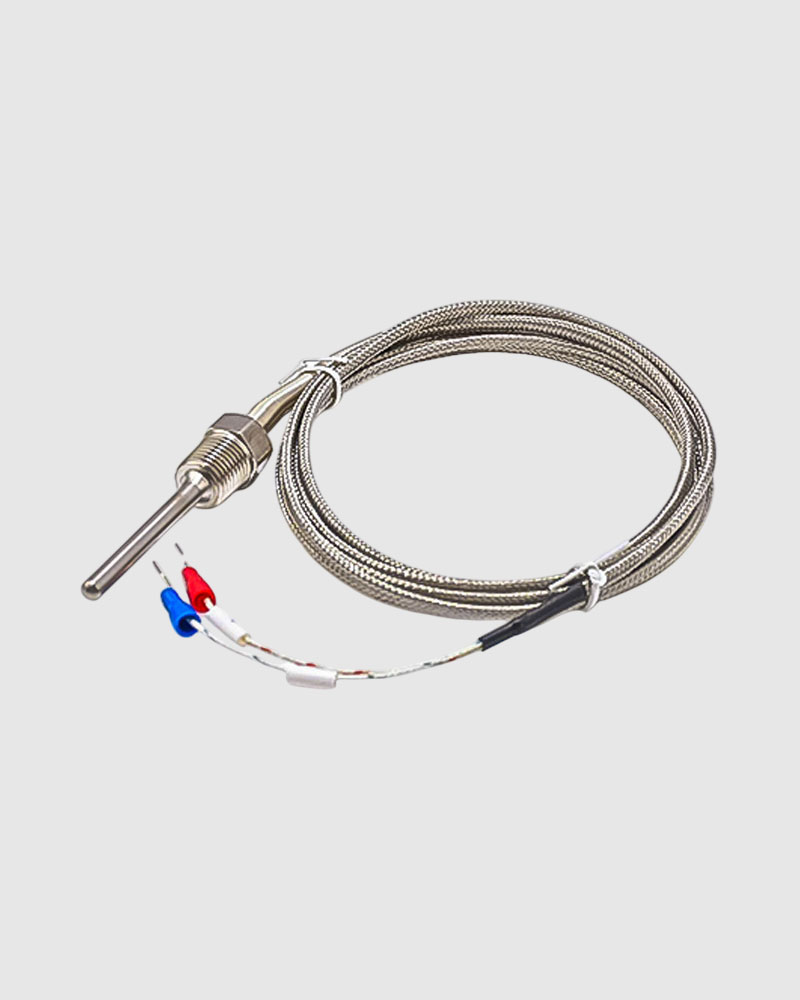

Temperature Sensor or Thermocouple with Wire
Wire Type | RTD / Thermocouple |
Element | Simplex / Duplex |
Diameter of Sheath | 6/8/10 mm or as per demand |
Length | As per demand |
Sheath Material | SS 316 / SS310 / Inconel / Titanium |
Termination | Head Type |
Cable | Teflon / SS/ Silicon/ Fibreglass |

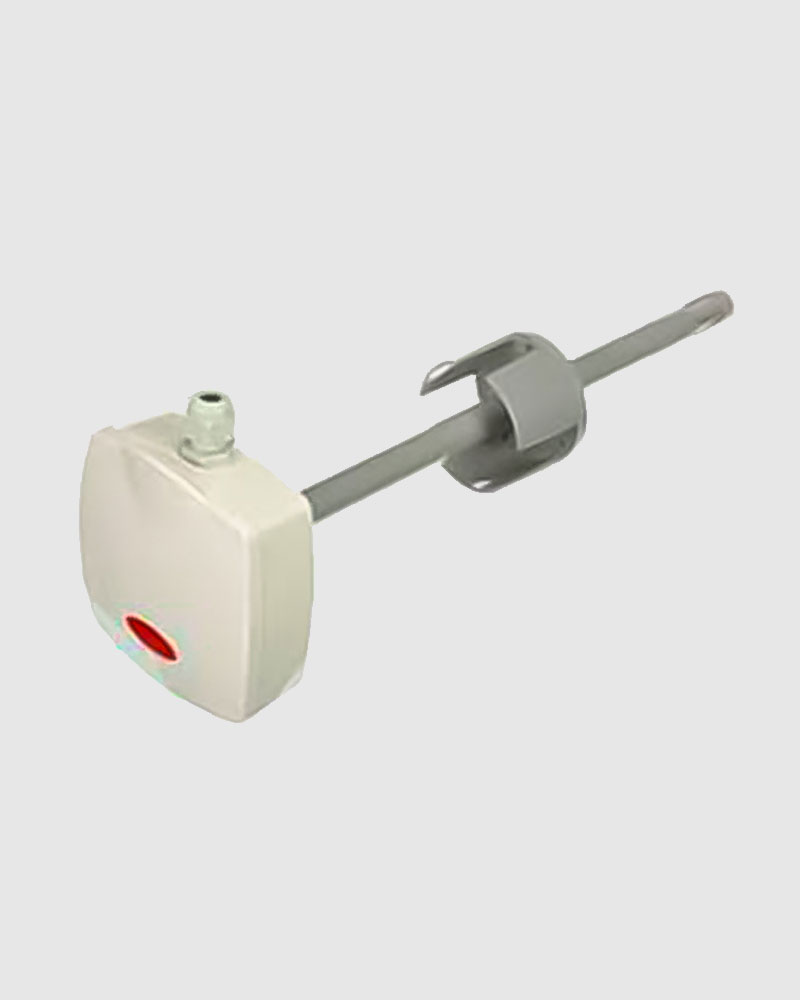

It is a Pt 1000 sensor with special metal or fibre protection head. The sensors can be installed with mounting flanges or process connections.
They are used for air temperature sensing in ducts and passages or vents.
They have fast response to changes in temperature. We provide import substitutes as per specifications or drawing.
HVAC Duct Mounted Temperature Sensor
Type | PT 1000 |
Element | Simplex / Duplex |
Diameter of Sheath | 6 mm |
Length | As per requirement |
Shape | Straight |
Sheath Material | SS 316 |
Termination | Weatherproof Terminal Box |
Process Connection / Flange | BSP, NPT or Flanged |

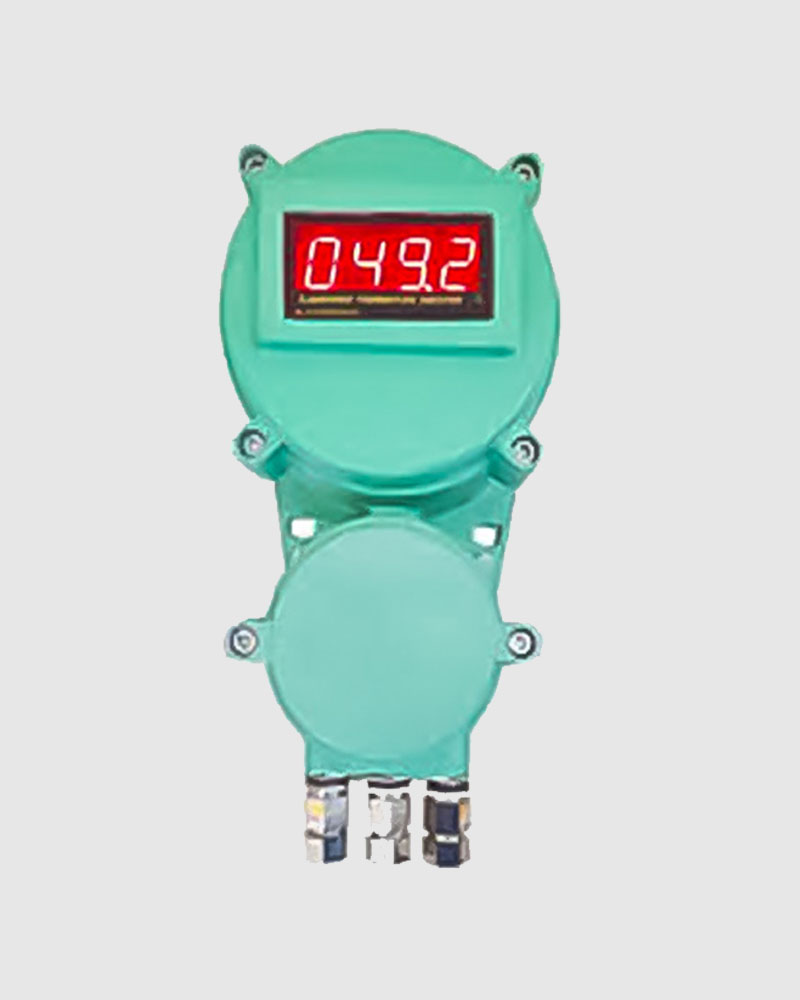

These are used with special flameproof heads. Flame proof head comes with single or double entry for cables.
Flame proof heads are used in flame sensitive and hazardous areas. The standard head for RTD sensors is as per certified flameproof standards.
Application Areas : Chemical Factories, Alcohol Generation and Processing Plants, Petrochemical Refineries.
Flame Proof Temperature Sensor
Head Type | RTD / Thermocouple |
Element | Simplex / Duplex |
Diameter of Sheath | 6mm / 8 mm / 10 mm /16 mm |
Length | As per requirement |
Shape | Straight |
Sheath Material | SS304 /Ss 316/ SS310/ Inconel |
Termination | IP65 / IP66 / IP67 Flameproof Head Type |
Process Connection / Flange | BSP, NPT or Flanged |
These sensor tubes used for acidic application are special and at times coated with acid resistant material for better life.
The coating material and its thickness depends upon the solvent. Normally plating applications use these specially coated sensors.
Application Areas : Sulphuric acids tanks, nickel and crome plating plants, etc
Acidic Application Temperature Sensor
Type | RTD / Thermocouple |
Element | Simplex / Duplex |
Diameter of Sheath | 6mm / 8 mm / 10 mm |
Length | As per requirement |
Shape | Straight / L Shaped |
Sheath Material | Glass / SS 304 / SS310 / Titanium or Specially Coated Material |
Termination | Head Type |
Process Connection / Flange | BSP, NPT or Flanged |

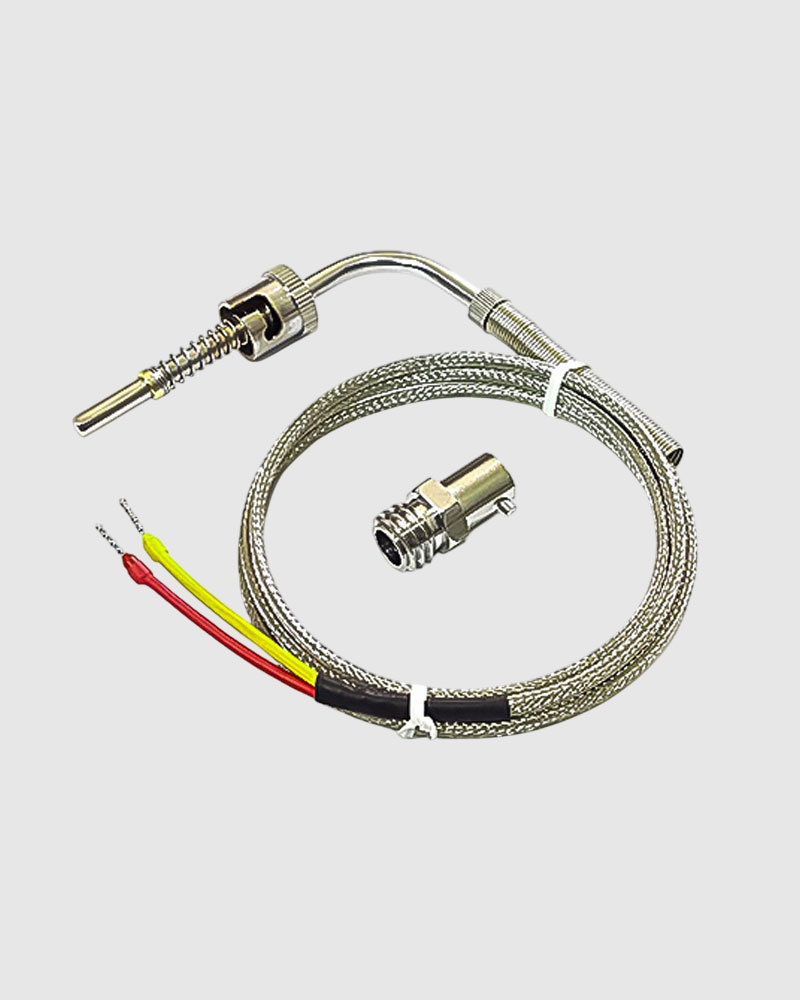

These come with rotating bayonut on spring. This gives flexibility to insert and locking.
The movement of bayonut ensures proper contact of the sensor. These are also available with 90 deg bend for easier handling and installation.
Application Areas : Moulding Machines, Extruders etc.
Moulding Machine Thermocouples Bayonut Type
Type | RTD / Thermocouple |
Element | Simplex / Duplex |
Diameter of Sheath | 4.7 |
Length | 20mm or as required |
Shape | Straight / L Shaped |
Sheath Material | SS304 |
Termination | Crimped Spring & Wired |
Bayonut | Standard 13 mm Rotating |
Cable | Teflon or SS Braided |

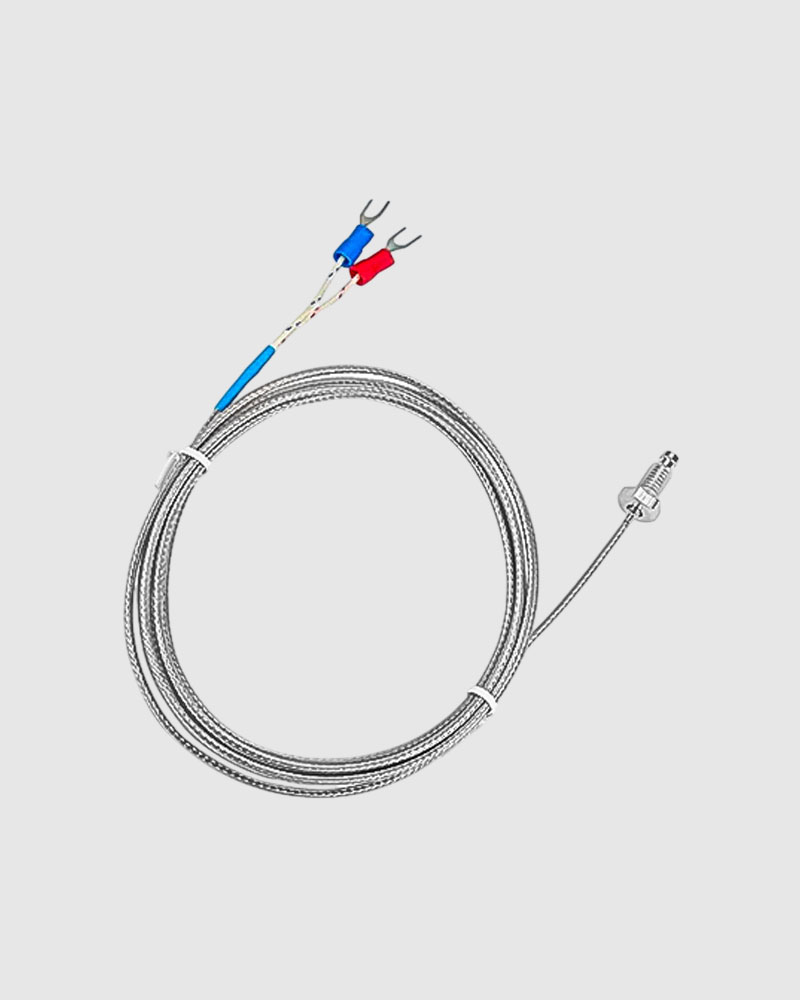

These sensors are screw head sensors fitted into moulds and metals.
Screws are used for better contact with the metals. Screw threads thermocouples are manufactured as per order. Various threads in different sizes are available.
Application Areas : Vibrating machines, moulding machines, extruders etc
Moulding Machine Thermocouples Threaded Screw Type
Type | RTD / Thermocouple |
Element | Simplex / Duplex |
Diameter of Sheath | As per order |
Length | 5 to 100 mm or as required |
Shape | Straight / L Shaped |
Sheath Material | SS304 |
Termination | Crimped Spring & Wired |
Thread Size | M6, M8, Inches or as per order |
Cable | Teflon or SS Braided |
Mineral insulated tubes are flexible type sensors.
They have fast response as compared to regular sensors with tubes. These are available in grounded and ungrounded types. Ungrounded thermocouples are preferred although their response time is slower.
Application Areas : Temperature detection from small holes and unreachable areas
Mineral Insulated Wire Type Sensors
Type | Thermocouple |
Element | Simplex / Duplex |
Diameter of Sheath | 1 mm to 6 mm |
Length | as per required |
Shape | Flexible |
Sheath Material | SS304 /SS 316/ SS310/ Inconel |
Termination | Crimped Spring & Wired |
Cable | Teflon or SS Braided |

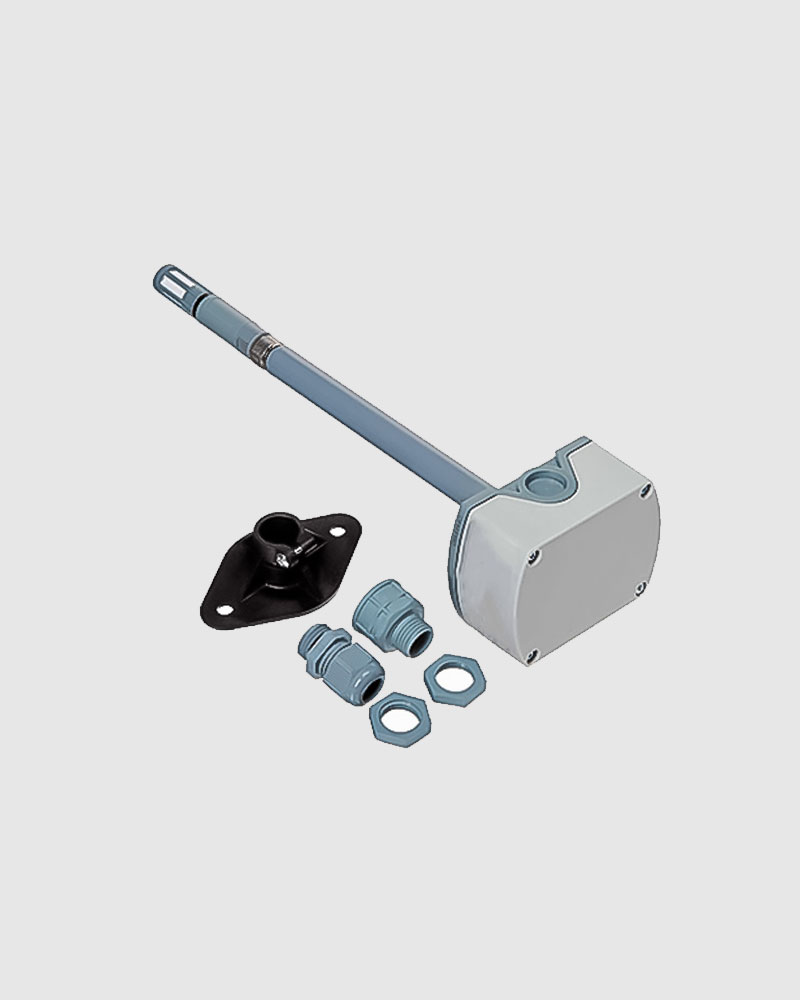

We manufacture temperature + humidity sensors for non-hazardous applications.
A humidity sensor senses and measures both moisture and air temperature. The ratio of moisture in the air to the highest amount of moisture at a particular air temperature is called relative humidity. Thus sensor has 2 outputs: Temperature and relative humidity(Rh).
These sensors are manufactured in plastic housings.
Specifications
Principle of measurement | Capacitance base (Non-hazardous use) |
Range | 0-100% Rh |
Operating Temperature | -25 to + 85 Deg C |
Operating Voltage | 12 VDC to 24 VDC |
Output | 4-20 mA (Linear) |
Accuracy | < 3% Rh |
Temperature sensor | RTD Inbuilt |
Mounting | Duct (Enclsosure) or Wire type |
Applications
Cold Storage
Server Rooms
Pharmaceutical Warehouse
Printers
Food processing
Automobile
Battery Manufacturing
