Temperature Sensor Manufacturers in Pune, Suppliers and Dealers in Pune
Heatcon Systems is the leading Temperature Sensor Manufacturers in Pune, Suppliers, Dealers and Exporters in Pune, Maharashtra. We are designing and supplying a variety of temperature sensors for various general applications like moulding machines, automobiles, gas detection etc. Such sensors are manufactured by using wire type of RTD (PT100 and PT 1000) and thermocouple (J,k R,S,T).
Being temperature sensor manufacturers, we have established a state-of-the-art production plant, which allows us to produce and deliver quality approved Temperature Sensors. Our highly experienced staff team produces these sensors in accordance with the established industrial standards using high quality materials. We can provide the sensors to the clients in various customized sizes, types, and specifications according to the client's needs. Let’s explore such types, specifications, and features as given below:
Types of our Temperature Sensor:
Serve as temperature sensor suppliers in Pune, Maharashtra, we supply multiple types of it to suit a wide variety of customer’s requirements. Here are some types of it.
- ✔ IFM sensors: These have molded sophisticated high-precision devices for industrial temperature measurement. Our sensors are known for reliability and different sensing technologies like RTDs or thermocouples. These sensors are well durable and frequently applied in a production process; for example, food processing and HVAC.

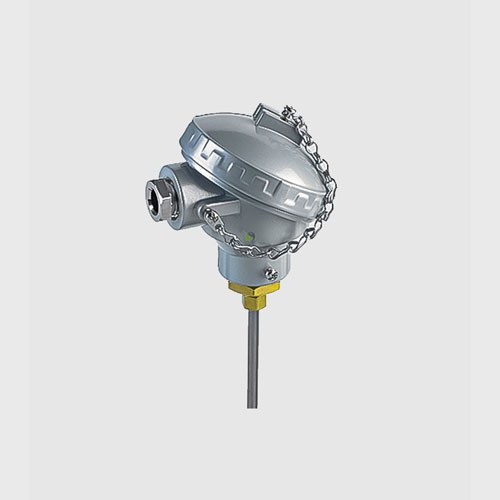

- ✔ Head Type Temperature Sensor: A head type sensor comprises a very short sensing element, which is incorporated into a compact head, all enclosed within a protective casing. This enables such temperature sensors to be extremely protective and accurate. Most such sensors find their ideal application in the monitoring of temperature of industrial processes which require measuring temperature confined spaces or exposed areas such as those found along pipelines or in vessels.
- ✔ Wire-type Temperature Sensors: comprise flexible conductors having a temperature sensitive component integrated inside a long cable. These sensors are specifically designed to measure temperatures across extensive locations as well as inaccessible areas. The temperature sensors from our company serve as key components in automotive and aerospace industries where they provide builders with adaptable installation capabilities.
- ✔ Flameproof Temperature Sensor: The design of flameproof temperature sensors intends their usage in risky environments which frequently face fire or explosive scenarios. These sensors come with tight enclosure systems which prevent ignition sources from leaking out. The sensors find applications in the oil and gas sector along with the petrochemical field and the mining industry primarily because safety measures and explosion resistant compliance take priority.
- ✔ HVAC Duct-Mounted Temperature Sensors: These function to track HVAC system air temperature by directly lodging the device inside ductwork. Stakeholders need real-time temperature data for proper system operation as part of heating ventilation and air conditioning control systems in buildings and industries which establish the importance of its usage.
- ✔ Screw Type Temperature Sensors: Our Screw temperature sensors are threaded to allow easy installation of these sensors into systems such as pipes, tanks, or pressurized environments. This ensures a sturdy connection, giving accurate temperature readings under extreme industrial conditions. The chemical processing and manufacturing industries are two of the many where secure and reliable installation is quite critical.
- ✔ Bayonet Type Temperature Sensor: Temperature sensors of the bayonet type are installed and removed quickly, owing to a release bayonet fitting. This makes them suitable for applications where the instruments are frequently replaced or calibrated. They are often used in HVAC and automotive industries, providing dependable convenience for temperature monitoring.
Technical Specifications of Temperature Sensor:
Find the attached technical sheet for more details and information!
| Specifications | Head Type Temperature Sensor: | Wire Type Temperature Sensor: | Flameproof temperature sensor | HVAC duct-mounted temperature sensors: | Screw Type Temperature Sensors | Bayonet Type Temperature Sensor; |
|---|---|---|---|---|---|---|
| Wire Type | RTD or Thermocouple | RTD or Thermocouple | RTD or Thermocouple | PT 1000 | RTD or Thermocouple | RTD/ Thermocouple |
| Element | Simplex or Duplex | Simplex/Duplex | Simplex or Duplex | NA | Simplex/Duplex | Simple or DUplex |
| Sheath Diameter | 6mm, 8mm or 10 mm, depends on model | 6mm, 8mm or 10 mm, depends on mode | 6mm, 8mm or 10 mm, 16mm | 6mm | 5 to 100 mm or Customized | 4.7 mm |
| Length | Customized | SS 316 / SS310 / Inconel / Titanium | SS 316 / SS310 / Inconel | SS316 | SS304 | SS304 |
| Termination | Head Type | Wire Type | IP65 / IP66 / IP67 Flameproof Head Type | Waterproof terminal Box | Crimped Spring & Wired | Crimped Spring & Wired |
| Head | Weather Proof | Teflon / SS/ Silicon/ Fibreglass | BSP, NPT or Flanged | BSP, NPT or Flanged | Teflon or SS Braided | Teflon or SS Braided |
Key Features:
- Flexible mineral insulated elements in SS316, SS310, and Inconel.
- Outstanding Performance even in a vibrating environment.
- Transition-type sensors can be found in fixed & rotating bayonet type.
- Rotating spring type is employed for setting the insertion distance.
- Available in different sizes, shapes like straight, round, etc.
- Highly thin and flat RTD elements
- Developed for thermal sensing of stator windings of a generator or motor
- Sensors are encased in unique fibre covers and set into the slot of the winding.
- Offered with fast male/female connectors.
Benefits of Temperature Sensor:
We, temperature sensor dealers in Pune, Maharashtra offer sensors with multiple benefits given as below:
- ✔ High Precision and Accuracy: Our temperature sensors are built to have high precision and accuracy in terms of temperature readings, providing good data for most industrial uses. Such accuracy is needed for process control, equipment maintenance, and safety.
- ✔ Wide Operational Temperature Range: Most types of temperature sensors are able to operate over the widest temperature range, from very low to extreme high-temperature to useful in many industrial environments.
- ✔ Easy Response: Through the rapid temperature-response design, our temperature sensors are able to respond quickly to temperature changes, enabling real-time control and monitoring of temperature-critical processes.
- ✔ Reliability and Durability: Outfitted with advanced temperature sensors, they set an industry standard in toughness to survive such things as high pressures, chemical environments, and vibrational shocks, all of which prolong their reliability in industrial operations.
Industry we Serve:
As Temperature Sensor Exporters in Pune, Maharashtra, we have delivered a wide range of sensors to various industries and applications.
- Industrial HVAC
- Ovens and Hot Air generators
- Automotive Industries
- Moulding Machine Applications
- Pharmaceutical and Chemical Industry
Being Temperature Sensor Manufacturers in Pune, suppliers, dealers and exporters in Pune, Maharashtra, at Heatcon Systems, we take pride in supplying high quality sensors at affordable rates. Our offered temperature sensors are acknowledged by the customers due to their quality, prompt delivery, custom designs, and unique features. So, don't hesitate to contact us and get the best quality temperature sensor in Pune, Maharashtra.
